在下面的教程中，我们将演示如何使用spring boot配置spring kafka。 spring boot使用合理的默认配置spring kafka。并使用application.yml属性文件覆盖这些默认值。
项目设置
2.1.4.release2.0.0.releasekafka_2.11-1.0.03.5此前已经学习了如何创建一个kafka消费者和生产者，它可以手动配置生产者和消费者。 在这个例子中，我们将使用spring boot使用合理的默认值来配置它们。
下载并安装apache kafka
要下载并安装apache kafka，请阅读官方文档( https://kafka.apache.org/quickstart )。 本教程假设服务器使用默认配置启动，并且没有更改服务器端口。
maven的依赖
这个项目中，使用apache maven来管理项目依赖关系。 确保以下依赖关系在类路径中。pom.xml 文件的内容如下所示 -
<project xmlns="http://maven.apache.org/pom/4.0.0"
xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
xsi:schemalocation="http://maven.apache.org/pom/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelversion>4.0.0</modelversion>
<groupid>com.h3.spring.kafka</groupid>
<artifactid>springboot-config</artifactid>
<version>1.0.0-snapshot</version>
<url>https://www.h3.com</url>
<description>spring kafka spring boot</description>
<name>spring kafka - ${project.artifactid}</name>
<parent>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter-parent</artifactid>
<version>2.0.0.release</version>
</parent>
<properties>
<java.version>1.8</java.version>
<project.build.sourceencoding>utf-8</project.build.sourceencoding>
<spring-kafka.version>2.1.4.release</spring-kafka.version>
</properties>
<dependencies>
<dependency>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter</artifactid>
</dependency>
<dependency>
<groupid>org.springframework.kafka</groupid>
<artifactid>spring-kafka</artifactid>
<version>${spring-kafka.version}</version>
</dependency>
<!-- testing -->
<dependency>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter-test</artifactid>
<scope>test</scope>
</dependency>
<dependency>
<groupid>org.springframework.kafka</groupid>
<artifactid>spring-kafka-test</artifactid>
<version>${spring-kafka.version}</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-maven-plugin</artifactid>
</plugin>
</plugins>
<defaultgoal>compile</defaultgoal>
</build>
</project>

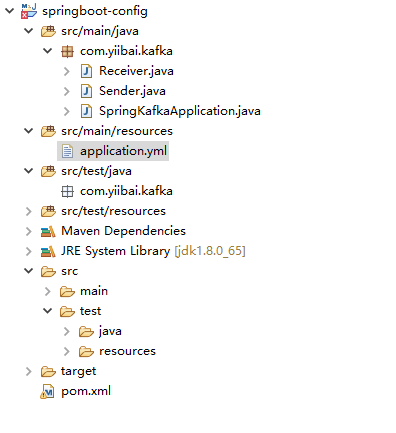

整个项目的目录结构如下所示 -
使用spring boot发送spring kafka消息
spring boot根据application.yml属性文件中配置的属性自动配置并初始化kafkatemplate。 通过使用@service注解，使sender类符合spring容器的要求来执行自动发现。
sender.java 的代码如下所示 -
package com.h3.kafka;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.beans.factory.annotation.value;
import org.springframework.kafka.core.kafkatemplate;
import org.springframework.stereotype.service;
@service
public class sender {
private static final logger log = loggerfactory.getlogger(sender.class);
@autowired
private kafkatemplate<string, string> kafkatemplate;
@value("${app.topic.foo}")
private string topic;
public void send(string message){
log.info("sending message='{}' to topic='{}'", message, topic);
kafkatemplate.send(topic, message);
}
}
用spring boot接收kafka消息
concurrentkafkalistenercontainerfactory和kafkamessagelistenercontainer bean也由spring boot自动配置。 可以选择使用application.yml属性文件来配置这些bean。
通过使用@kafkalistener来注解一个方法spring kafka会自动创建一个消息监听器容器。
receiver.java 实现的代码如下所示 -
package com.h3.kafka;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.kafka.annotation.kafkalistener;
import org.springframework.messaging.messageheaders;
import org.springframework.messaging.handler.annotation.headers;
import org.springframework.messaging.handler.annotation.payload;
import org.springframework.stereotype.service;
@service
public class receiver {
private static final logger log = loggerfactory.getlogger(receiver.class);
@kafkalistener(topics = "${app.topic.foo}")
public void receive(@payload string message,
@headers messageheaders headers) {
log.info("received message='{}'", message);
headers.keyset().foreach(key -> log.info("{}: {}", key, headers.get(key)));
}
}
使用application.yml配置应用程序
spring boot会尝试根据pom.xml文件中指定的依赖关系自动配置应用程序，并设置合理的默认值。这里还没有配置任何consumer，producer或kafkatemplate bean，spring引导将使用spring引导默认值自动配置它们。 这些值可以使用application.yml属性文件重写。可以找到更多关于spring boot kafka properties的信息。
还创建了一个在src/main/resources文件夹中的application.yml属性文件。 这些属性通过spring引导注入到配置类中。
spring:
kafka:
consumer:
group-id: foo
auto-offset-reset: earliest
key-deserializer: org.apache.kafka.common.serialization.stringdeserializer
value-deserializer: org.apache.kafka.common.serialization.stringdeserializer
producer:
key-serializer: org.apache.kafka.common.serialization.stringserializer
value-serializer: org.apache.kafka.common.serialization.stringserializer
app:
topic:
foo: foo.t
logging:
level:
root: warn
org.springframework.web: info
com.h3: debug
运行应用程序
在运行这个项目程序之前，需要运行 zookeeper 和 kafka ，如下所示 -
启动zookeeper服务 -
d:\software\kafka_2.12-1.0.1\bin\windows> zookeeper-server-start.bat d:\software\kafka_2.12-1.0.1\config\zookeeper.properties
启动kafka服务 -
d:\software\kafka_2.12-1.0.1\bin\windows> kafka-server-start.bat d:\software\kafka_2.12-1.0.1\config\server.properties
最后，编写了一个简单的spring boot应用程序来演示应用程序。使这个演示工作，需要在端口9092上运行的本地主机上的kafka服务器，这是kafka的默认配置。
package com.h3.kafka;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.boot.commandlinerunner;
import org.springframework.boot.springapplication;
import org.springframework.boot.autoconfigure.springbootapplication;
@springbootapplication
public class springkafkaapplication implements commandlinerunner {
public static void main(string[] args) {
springapplication.run(springkafkaapplication.class, args);
}
@autowired
private sender sender;
@override
public void run(string... strings) throws exception {
sender.send("spring kafka and spring boot configuration example");
}
示例
当运行应用程序时，应该得到以下输出。
. ____ _ __ _ _
/\\\\ / ___'_ __ _ _(_)_ __ __ _ \\ \\ \\ \\
( ( )\\___ | '_ | '_| | '_ \\/ _` | \\ \\ \\ \\
\\\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: spring boot :: (v2.0.0.release)
2018-03-14 11:22:25.177 info 2892 --- [ main] com.h3.kafka.springkafkaapplication : starting springkafkaapplication on my-pc with pid 2892 (f:\\worksp\\spring-kafka\\springboot-config\\target\\classes started by administrator in f:\\worksp\\spring-kafka\\springboot-config)
2018-03-14 11:22:25.181 debug 2892 --- [ main] com.h3.kafka.springkafkaapplication : running with spring boot v2.0.0.release, spring v5.0.4.release
2018-03-14 11:22:25.182 info 2892 --- [ main] com.h3.kafka.springkafkaapplication : no active profile set, falling back to default profiles: default
2018-03-14 11:22:26.869 info 2892 --- [ main] com.h3.kafka.springkafkaapplication : started springkafkaapplication in 2.208 seconds (jvm running for 2.751)
2018-03-14 11:22:26.871 info 2892 --- [ main] com.h3.kafka.sender : sending message='spring kafka and spring boot configuration example' to topic='foo.t'
... ...
2018-03-14 11:22:36.035 warn 2892 --- [ntainer#0-0-c-1] org.apache.kafka.clients.networkclient : [consumer clientid=consumer-1, groupid=foo] error while fetching metadata with correlation id 10 : {foo.t=leader_not_available}
2018-03-14 11:22:36.156 warn 2892 --- [ad | producer-1] org.apache.kafka.clients.networkclient : [producer clientid=producer-1] error while fetching metadata with correlation id 7 : {foo.t=leader_not_available}
2018-03-14 11:22:36.163 warn 2892 --- [ntainer#0-0-c-1] org.apache.kafka.clients.networkclient : [consumer clientid=consumer-1, groupid=foo] error while fetching metadata with correlation id 12 : {foo.t=leader_not_available}
2018-03-14 11:22:36.433 warn 2892 --- [ad | producer-1] org.apache.kafka.clients.networkclient : [producer clientid=producer-1] error while fetching metadata with correlation id 8 : {foo.t=leader_not_available}
2018-03-14 11:22:36.436 warn 2892 --- [ntainer#0-0-c-1] org.apache.kafka.clients.networkclient : [consumer clientid=consumer-1, groupid=foo] error while fetching metadata with correlation id 14 : {foo.t=leader_not_available}
2018-03-14 11:22:38.559 warn 2892 --- [ntainer#0-0-c-1] org.apache.kafka.clients.networkclient : [consumer clientid=consumer-1, groupid=foo] error while fetching metadata with correlation id 16 : {foo.t=leader_not_available}
2018-03-14 11:22:38.559 warn 2892 --- [ad | producer-1] org.apache.kafka.clients.networkclient : [producer clientid=producer-1] error while fetching metadata with correlation id 9 : {foo.t=leader_not_available}
2018-03-14 11:22:40.028 warn 2892 --- [ad | producer-1] org.apache.kafka.clients.networkclient : [producer clientid=producer-1] error while fetching metadata with correlation id 10 : {foo.t=leader_not_available}
2018-03-14 11:22:56.203 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : received message='spring kafka and spring boot configuration example'
2018-03-14 11:22:56.205 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_offset: 0
2018-03-14 11:22:56.206 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_nativeheaders: recordheaders(headers = [], isreadonly = false)
2018-03-14 11:22:56.206 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_consumer: org.apache.kafka.clients.consumer.kafkaconsumer@68cba188
2018-03-14 11:22:56.206 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_timestamptype: create_time
2018-03-14 11:22:56.206 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_receivedmessagekey: null
2018-03-14 11:22:56.207 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_receivedpartitionid: 0
2018-03-14 11:22:56.207 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_receivedtopic: foo.t
2018-03-14 11:22:56.207 info 2892 --- [ntainer#0-0-c-1] com.h3.kafka.receiver : kafka_receivedtimestamp: 1520997760772
